If you are planning a laser cutting job, one of the first decisions you will face is whether your parts are best produced using flat laser cutting or tube laser cutting. While both processes use high powered fibre lasers and deliver exceptional accuracy, they are designed for very different types of components.
Understanding the difference early can save time, reduce cost, and avoid design changes later in the project.
What Is Flat Laser Cutting?
Flat laser cutting is used to cut parts from sheet material. The material is supplied as flat sheets, typically mild steel, stainless steel, aluminium, or brass, and the laser cuts the profile directly from the sheet.
This is the most common form of laser cutting and is ideal for parts that will remain flat or be folded, welded, or assembled later.
Flat laser cutting is best for:
-
Brackets, plates, and panels
-
Folded parts with a non-standard bend angle or trays, enclosures, and chassis
-
Decorative panels and signage
Flat laser cutting offers excellent edge quality, tight tolerances, and efficient nesting, which helps keep costs down on both small batches and larger production runs.

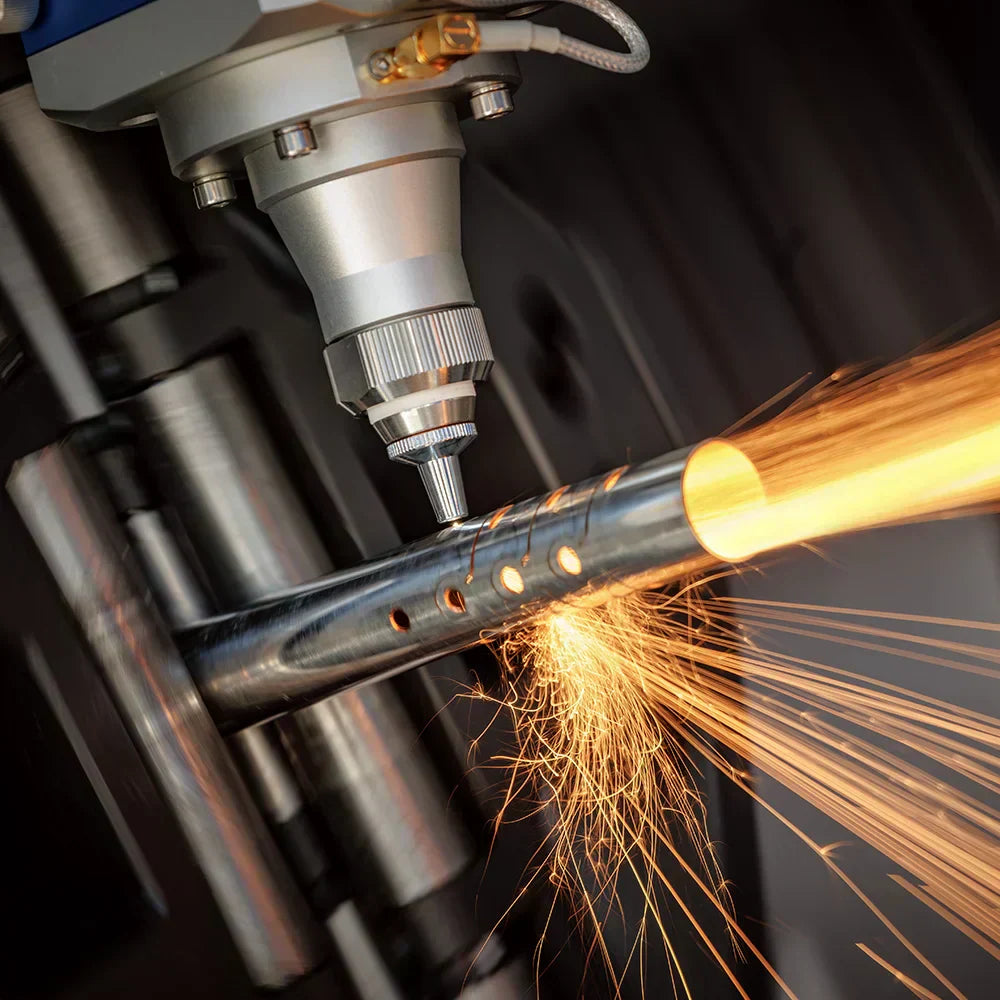

What Is Tube Laser Cutting?
Tube laser cutting is designed for structural profiles, including hollow sections such as square, rectangular, round, and oval tube, as well as open sections like angles, channels, and other formed profiles. Rather than cutting from flat sheet, the laser cuts directly into the section itself, allowing holes, slots, mitres, cut-outs, and complex joints to be produced in a single, highly accurate operation.
By cutting features directly into the section, tube laser cutting removes the need for secondary drilling, sawing, or manual notching. This makes it an efficient solution for structural, fabricated, and frame-based components where accuracy and consistency are critical.
Tube laser cutting is best for:
-
Frames and welded structures
-
Handrails, balustrades, and architectural features
-
Furniture frames and display systems
-
Automotive and motorsport components
- Parts with standard bend angles, such as 90 degrees
Tube laser cutting is particularly powerful for parts that need accurate joints, repeatability, and fast assembly.
Key Differences Between Flat and Tube Laser Cutting
The main difference lies in the starting material. Flat laser cutting works with sheet material, while tube laser cutting is used for structural sections, including hollow profiles and open sections such as angles and channels.
Flat laser cutting is ideal when parts are two dimensional or will be folded and formed later. Tube laser cutting is better suited to components that are already three dimensional and require features to be added directly into the section.
Assembly efficiency is another key distinction. Tube laser cutting can significantly reduce fabrication time, as joints, slots, and locating features are cut directly into the section, helping parts align accurately during welding or assembly.
Cost Considerations
Flat laser cutting is often the most cost effective option for simple parts, especially when quantities are higher and nesting efficiency is good.
Tube laser cutting can appear more expensive per part at first, but it often reduces overall project cost by:
-
Eliminating drilling and secondary machining
-
Reducing fabrication and welding time
-
Improving consistency across repeat parts
Choosing the right process depends on the full lifecycle of the part, not just the cutting stage.
Can a Project Use Both?
Yes, many projects benefit from using both flat and tube laser cutting together. For example, a frame may be tube laser cut, while brackets, gussets, and mounting plates are flat laser cut and welded on later.
Designing parts with both processes in mind often leads to cleaner assemblies and lower overall manufacturing costs.
How SSC Laser Can Help
At SSC Laser, we offer both flat and tube laser cutting, allowing us to recommend the most suitable process for your specific project. Whether you are producing a single prototype or a full production run, we focus on accuracy, efficiency, and practical manufacturing advice.
If you have drawings ready or just an idea you want to explore, get in touch and we will help you choose the right laser cutting solution from the start.
