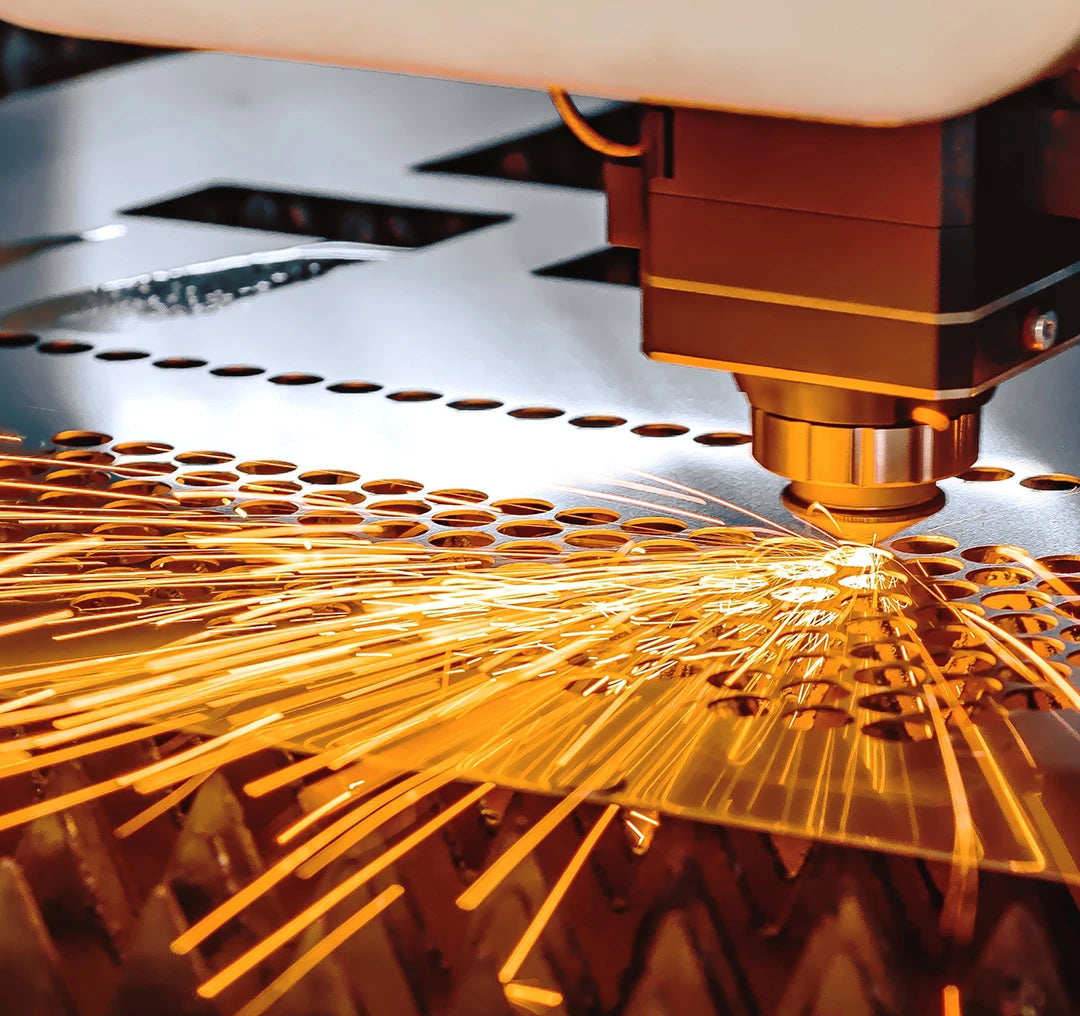

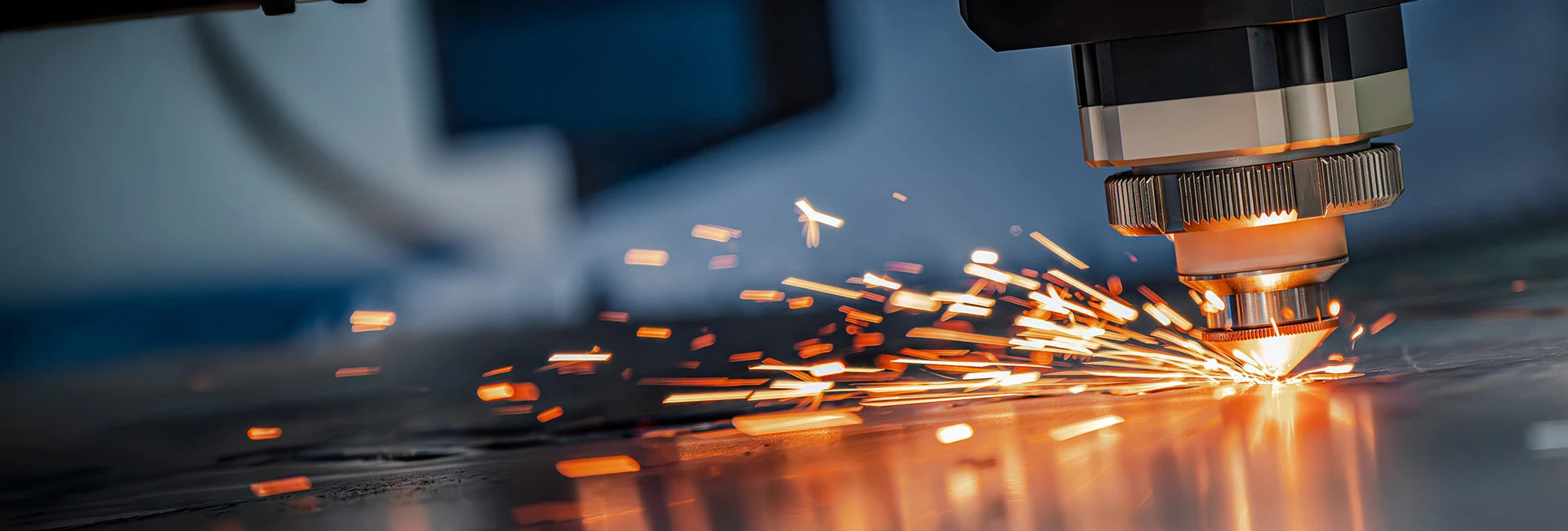

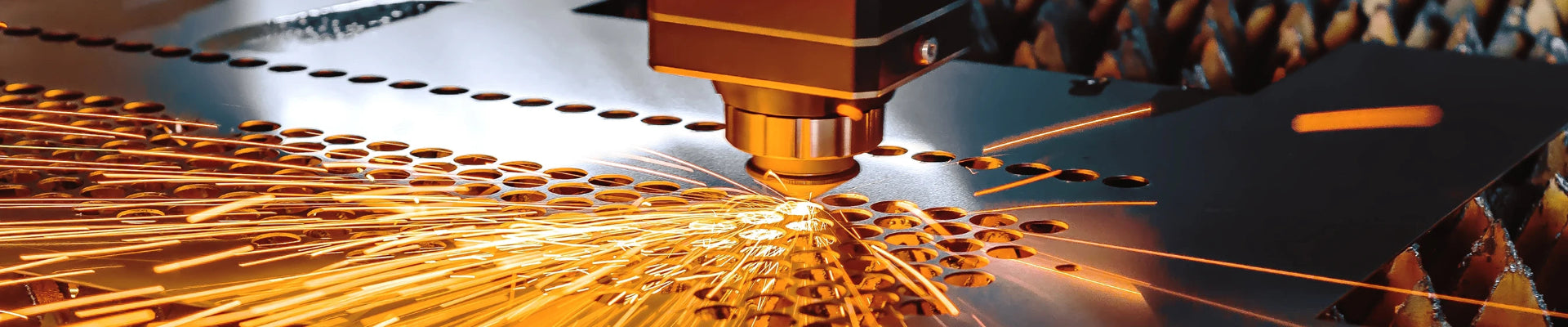

A Bystronic Laser cutting some steel with sparks flying A Bystronic laser cutting steel with sparks flying

Flat Laser Cutting

SSC’s quality and service proposition makes us the premier choice for laser cutting in the UK. Our powerful Bystronic lasers, quick deliveries and focus on quality ensure we achieve the best possible outcomes for our customers.

Request Quote

Why choose SSC for your next Flat Project?

With our cutting-edge Bystronic Fiber lasers boasting up to a powerful 20kW output, we offer unparalleled precision and efficiency in laser cutting services. Whether you need intricate designs or rapid production of large-scale components, our state-of-the-art technology ensures impeccable results every time. Backed by years of experience and a commitment to excellence, we provide a seamless solution for a diverse range of industries. From automotive to aerospace, our precise cuts guarantee optimal fit and functionality, saving both time and material costs. Trust us for your laser cutting needs and experience the difference that cutting-edge technology and expertise can make in your project's success.

Quick Delivery

Our typical turn around for Flat laser cutting is 2-4 days.

Customer Service

Each key customer has their own direct point of contact, working with you to best service your requirements.

Quality Focused

Equipped with highly skilled employees and the latest
cutting technology, we aim to get it right first time, every time.

Quality Certified

We are ISO 9001 and EN 1090 certified, ensuring quality and consistency at every step of the process.

Productive Machinery

Home of the UK's most powerful laser, we achieve quick cutting times on an industry leading range of materials

Speedy Quotations

We respond to 99% of customer enquiries in less than 4 working
hours.

25 Years Experience

Founded in 2000, our breadth of knowledge and experience is amongst the best in the
industry.

Dedicated Staff

From Production to Sales, CAD to Support Services, many of our employees have been with us for 5, 10, even 20 years and more.

How do we do it?

The Bystronic 20kW

Our 20 kilowatt fiber laser has given us a significant increase in power over earlier machines. The leap in output against the previously available 15 kilowatt lasers has given us an average increase in productivity of 40% for medium thickness mild steel and stainless steel sheets.

We are now able to cut thicker materials much more reliably whilst achieving excellent cut quality and reduced burring. In particular, we have seen exceptional cutting results on mild steel up to 30mm, stainless steel and aluminium up to 40mm and copper and brass up to 15mm.

The 20 kilowatt machine retains all the high-precision technology of earlier machines whilst now automatically selecting the correct parameters for the parts being cut. Its enhanced technology, high quality cutting head and intelligent cutting process enable us to achieve the highest levels of quality even in demanding applications, resulting in laser cutting results for our customers that complement our world class service levels.

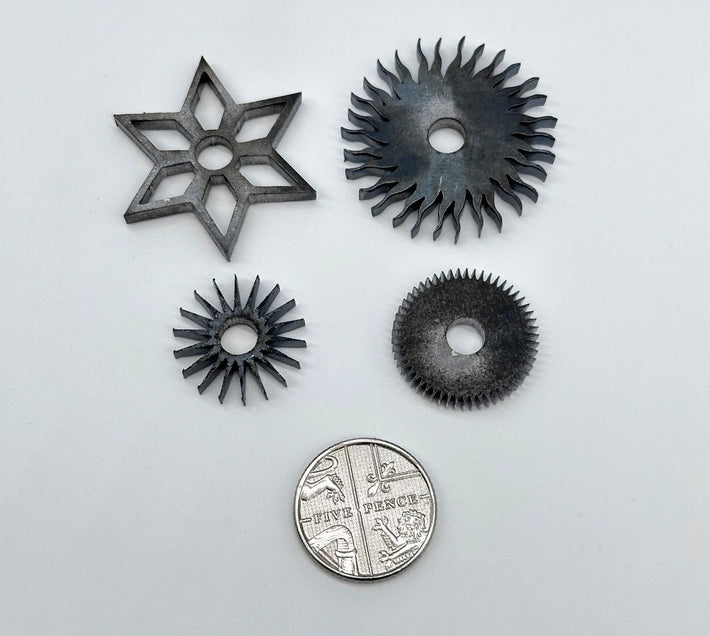

Close up image showing small detailed laser cut parts with great accuracy and precision

High Precision Cutting

The high precision technology in our Bystronic Fiber lasers is not just suited to large and high-volume applications. We can just as easily cut delicate or intricate shapes, sometimes with unexpected applications, such as jewellery charms, leaves and flowers for decorative artworks or cogs and washers for clocks. The possibilities are almost limitless.

Quality

The power of Mixed Gases

Using mixed gas in metal laser cutting offers a plethora of advantages. Firstly, it enhances cutting quality by minimizing oxidation, resulting in cleaner edges, crucial for materials like stainless steel and aluminum.

Secondly, mixed gases enable increased cutting speeds by optimizing laser efficiency, thus reducing processing times. Moreover, they contribute to a smaller heat affected zone (HAZ), mitigating distortion and warping, particularly beneficial for thin or heat-sensitive metals.

Mixed gases provide versatility, allowing tailored combinations for various materials and thicknesses, thereby optimizing cutting performance.

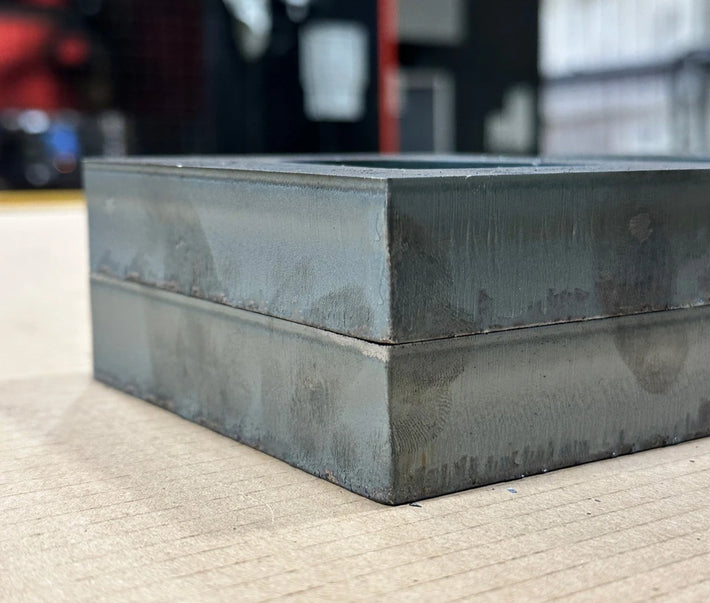

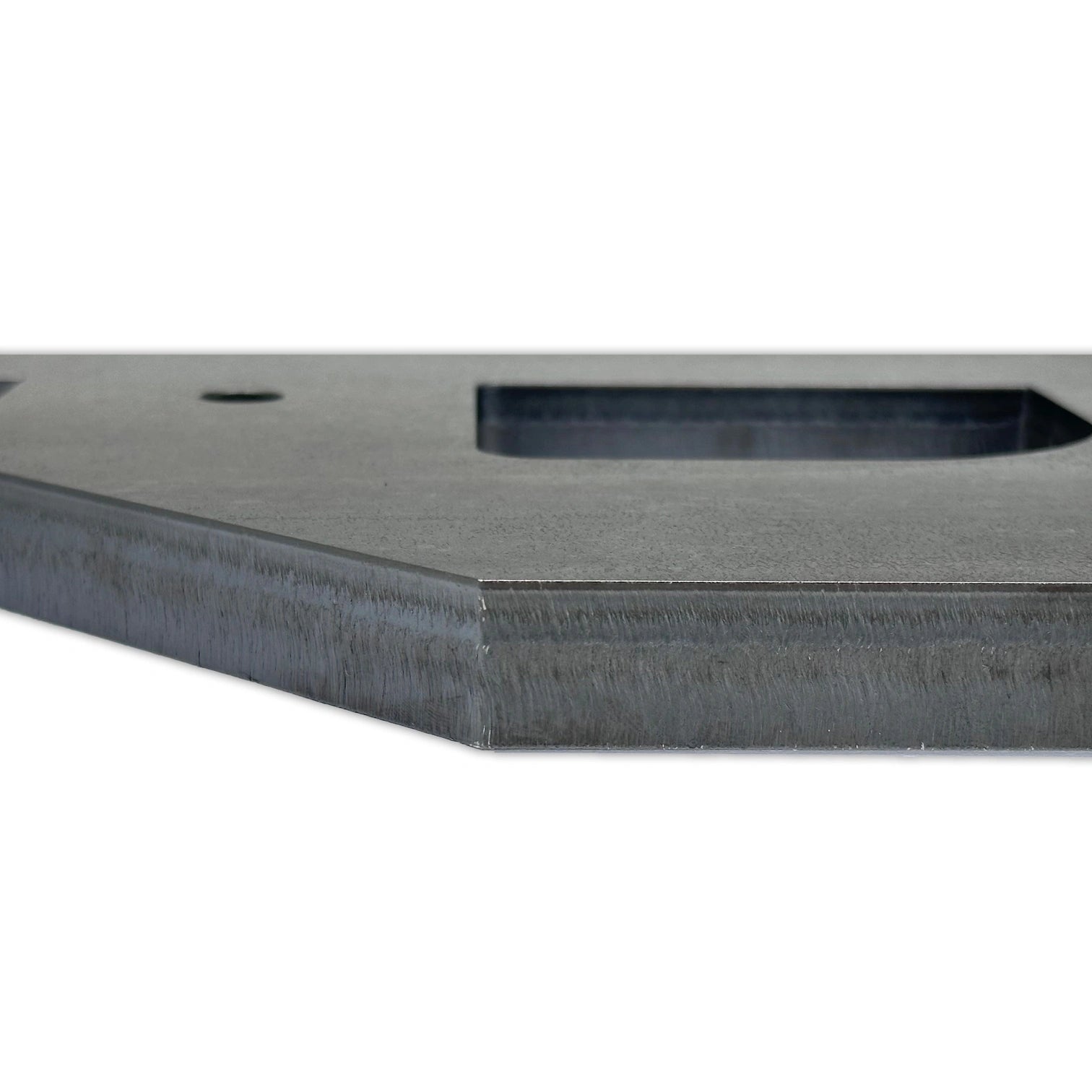

30mm Mild steel that has been cut using mixed gas (oxygen and nitrogen)
Mixed Gas

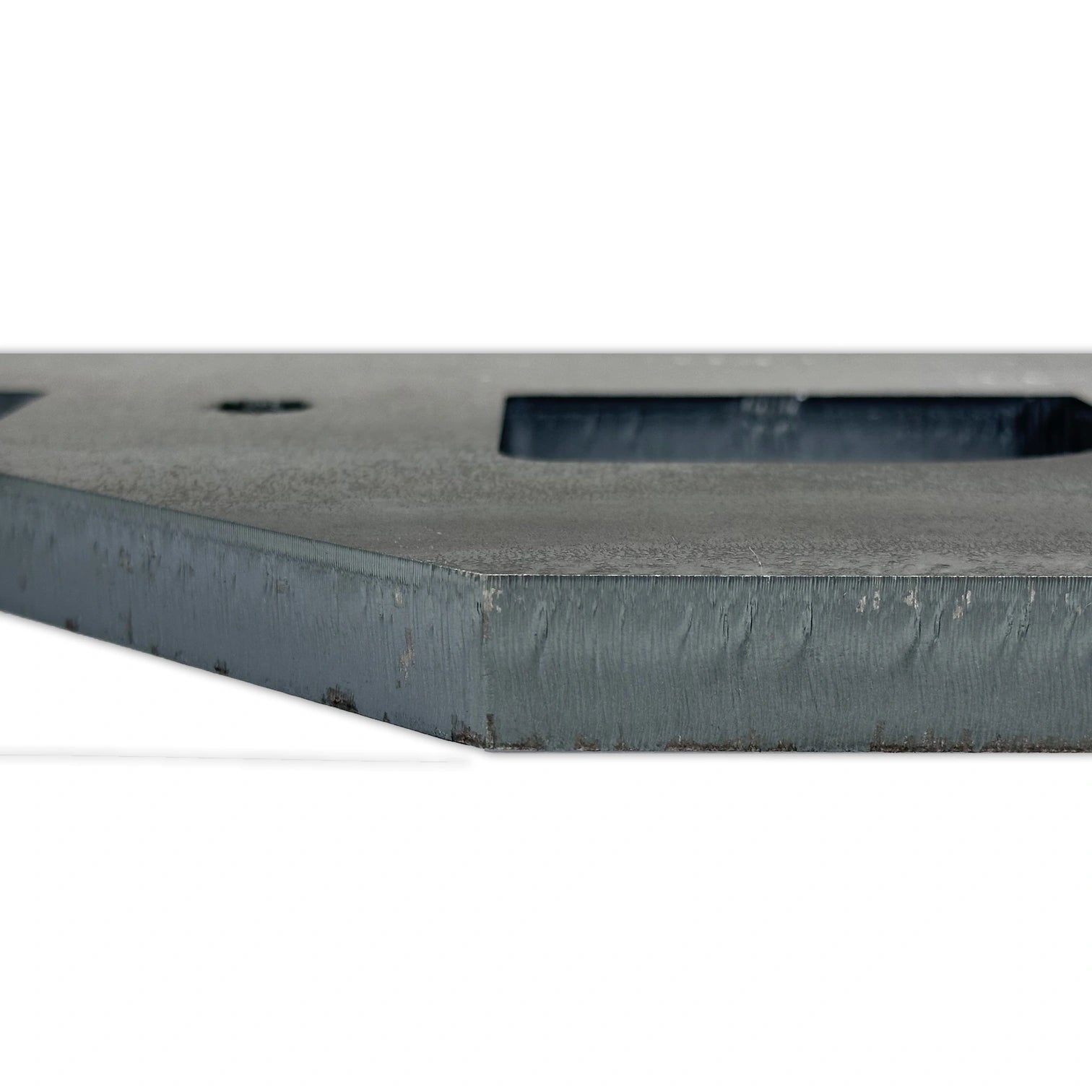

30mm Mild steel that has been cut using only nitrogen, showing burr
Without Mixed Gas

Bystronic 10 & 12kW

Our 10 and 12 kilowatt fiber lasers are the machines that we rely on for our mid-range work, typically using steel sheets in thicknesses between 3mm and 15mm.

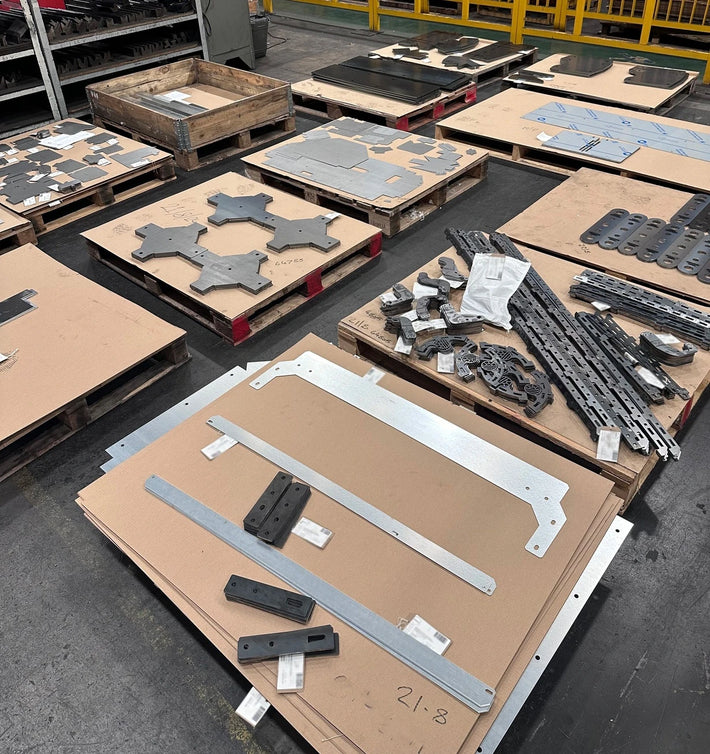

These workhorse machines allow us to cut both high and low volumes of parts quickly, flexibly, and cost-effectively, enabling us to keep our delivery times short and our customer service levels high.

The reliability and low maintenance costs of the Bystronic lasers give us that competitive edge. Couple this with the fact that we have 3 lasers of varying power outputs, giving our production facility an excellent balance, and you can see why our customers rely on us to deliver exactly what they need when they need it.

Materials & Capabilities

Unsure what material to choose? We can help you figure it out.

Suitable for Laser Cutting & Engraving

Max Sheet Size: 3000 x 1500mm

Max Thickness: 40mm

Grades we stock: 304 2B | 304 2B Perforated | 304 Bright Annealed | 304 Bright Polished | 304 Circle Polish | 304 Dull Polished 240 grit 304 Dull Polished 2 Faces | 304 Dull Polished P 320 grit | 304 HR (1.4301) | 304 Mirror Polished 1 Face | 304 Mirror Polished 2 faces | 304 Satin Polish 240G | 304 Satin Polish 320Grit (1.4301) | 304 SS Textured 6WL | 304 Treadplate (1.4301) | 310 SS (1.4845) | 316 2B | 316 2B Perforated Sheet | 316 Bright Annealed | 316 Circle Polish | 316 Dull Polished 2 Faces | 316 Dull Polished 2 Faces | 316 HR (1.4404) | 316 Mirror Polished 1 face | 316 Mirror Polished 2 faces | 430 Bright Annealed | 430 Dull Polished 1 Face | Inconel 600 | Inconel 601 | Inconel 625 | Inconel 718 | Inconel 800 | S31803 Duplex | S32760 Super Duplex

Any grades we do not stock can usually be sourced next day

Cutting Tolerance: Up to 3m = +/-0.1mm

Suitable for Laser Cutting & Engraving

Max Sheet Size: 3000 x 1500mm

Max Thickness: 30mm

Grades we stock: Boiler Plate | Corten | CR4 | DOMEX | DURBAR S275 | Galv | Gauge Plate | HARDOX | RAEX | Reverse Mill S355 J2+N | S275 J2 | S275C | S275C+N | S275JR | S355 J2 | S690QL1 | S700MC | SPRING STEEL | Strenx | Zintec

Any grades we do not stock can usually be sourced next day

Cutting Tolerance: Up to 3m = +/-0.1mm

Suitable for Laser Cutting & Engraving

Max Sheet Size: 3000 x 1500mm

Max Thickness: 40mm

Grades we stock: 1050 H14/H24 | 5 Bar Aluminium Tread Plate | 5083 H111 | 5083-0 | 5251 H22 | 6082 T6 | J5 7S Aluminium

Any grades we do not stock can usually be sourced next day

Cutting Tolerance: Up to 3m = +/-0.1mm

Suitable for Laser Cutting & Engraving

Max Sheet Size: 3000 x 1500mm

Max Thickness: 20mm

Grades we stock: We do not hold any stock of Brass, but we are able to order it in at the time an order is placed.

Cutting Tolerance: Up to 3m = +/-0.1mm

Suitable for Laser Cutting & Engraving

Max Sheet Size: 3000 x 1500mm

Max Thickness: 20mm

Grades we stock: We do not hold any stock of Copper, but we are able to order it in at the time an order is placed.

Cutting Tolerance: Up to 3m = +/-0.1mm

Suitable for Laser Cutting & Engraving

Max Sheet Size: 3000 x 1500mm

Max Thickness: 10mm

Grades we stock: We do not hold any stock of Titanium, but we are able to order it in at the time an order is placed.

Cutting Tolerance: Up to 3m = +/-0.1mm

FAQs

If your question isn't answered, get in touch and we'd be happy to assist.

Do you cut free issue material?

Yes, we are happy to cut free issue material as long as the quality is suitable for our lasers.

What's the smallest hole you can cut?

The traditional rule was that the thickness of the material was equal to the smallest diameter hole. But this has changed with the advances of laser technology allowing us to cut more smaller holes in thicker plate.

What materials can you cut?

On our flat bed lasers, the materials we can currently process include mild steel (0.5-40mm), stainless steel (0.5-40mm) and aluminium (0.5mm to 40mm) in most forms. But the industry is changing with the advent of fibre laser technology. We can also now cut Brass & Copper up to 20mm.

On our tube lasers, the materials we can currently process are Mild Steel and Stainless Steel (200x200mm Box Section, 240 OD Tube, 15mm wall in Mild Steel and 6mm wall in Stainless Steel with a weight of 40kg/m) Aluminium, Copper and Brass (130mm Box Section, 130mm OD Tube, 6.35mm wall in aluminium, 5mm in Brass and 4mm in Copper with a weight of 17Kg/m)

How accurate is laser cutting?

Machine suppliers quote plus or minus 0.2mm, though the reality is that this can vary significantly without constant servicing and maintenance. SSC may be able to work to tighter tolerances if requested.

Why should I laser cut?

It is probably the most cost-effective and fastest way of producing a clean and accurate profile.

How thick is a laser beam?

This can vary dependant on optic cleanliness, but the optimum fiber laser beam is between 0.1mm - 0.2mm.
